RNA49...2RS Series

RNA49...2RS Series

Send Inquiry

Description
Technical diameters

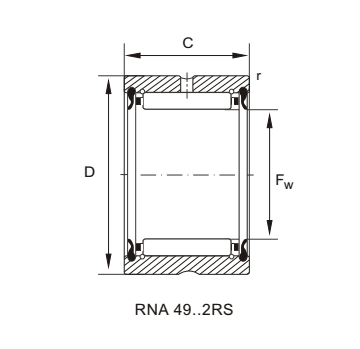

Inquiry	Bearing No.	Boundary dimensions（mm）			Basic load ratings(kN)		Limiting speed(rpm )	Mass
Inquiry	Bearing No.	Fw	D	C	Dynamic(Cr)	Static(Cor)	Oil	Kg
	RNA4900-2RS	14	22	13	4560	4660	13000	16
	RNA4901-2RS	16	24	13	4950	5800	12000	18
	RNA4902-2RS	20	28	13	5980	9500	10000	21.5
	RNA4903-2RS	22	30	13	6050	10100	9000	23
	RNA4904-2RS	25	37	17	14900	17500	7500	56
	RNA4905-2RS	30	42	17	16300	21500	6500	60
	RNA4906-2RS	35	47	17	20020	24900	5500	69
	RNA4907-2RS	42	55	20	22500	37000	4800	107
	RNA4908-2RS	48	62	22	33050	50900	4200	154
	RNA4909-2RS	52	68	22	34800	56800	3900	157
	RNA4910-2RS	58	72	22	37800	61500	3500	160
