SG Series

SG35

Send Inquiry

Description
Technical diameters

SG Series

SG Series

Type :SG35

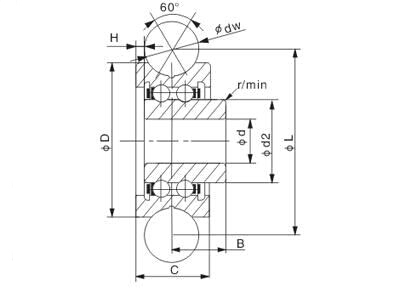

Dimensions (mm)

dw :12

d :12

D :42

C :19

B :12.5

L :48.93

d2 :18

H :1.5

Load(KN)

Cw :8.5

Cow :5.1

Weight

(Kg) :136
